It is an expensive and important step that reduces the user’s stress, especially in unexpected times, ensuring the house remains electrified. Whether due to extreme weather conditions, grid power failures, or other reasons, a full-house generator ensures an uninterrupted power supply, allowing every member of the household to stay busy. Nonetheless, when it comes to such an installation, it is essential to recognize the amount that will be spent. This post will throw light on the most pricey components when it comes to the entire house generator installation, and when to use them in relation to the size of the house, along with generators, which help identify the installation costs. Needless to say, by the time one finishes reading this article, one cannot fail to have an understanding of the placement of a whole house generator in one’s plan, therefore making it a better solution both for the premises of the person proposing and for their financial abilities.
Factors Influencing Generator Installation Costs
Generator Type
Standby generators, which are fixed items, are generators that automatically switch power on. They are generally more expensive compared to portable generators because they have significantly higher capacities and more advanced features. On average these tend to e available for anything in between $2000 and $10,000 depending on the wattage demanded by your home.
Installation Complexity
Another key factor is the ease of installation. Installing a generator involves more electrical systems, gas lines, whether propane or diesel, and possible changes, especially to the main power box. Thus, houses with older circuit boards or those with awkward engineering features may require extra hours and expenses, resulting in a higher overall price. Extensive work starts from $3,000 to $6,000 in cash, after agreeing on a timeframe with the contractor.
Additional Expenses
In addition to the above, other costs should be considered, including permit fees, inspection charges, and the purchase of materials such as transfer switches or concrete bases for mounting the generator. Transfer switches are essential for uninterrupted electricity sources and are estimated to cost between $500 and $2000, depending on the specific type and scope of the system that is required. Every such activity, such as the installation of a generator, incurs costs after completion, and requirements like servicing and maintaining the fuel materials are provided to every set of clients.
Location and Labor Expenses
Installing a generator can be very expensive, primarily influenced by the cost of labor and the city in which the installation is being performed. Areas with high cost-of-living factors are generally more costly, as labor charges can range from $50 to $150 per hour for skilled electricians or dependable contractors. If work is expected in rural areas, the general labor cost tends to be very low; however, provisions must be made for any additional costs, such as transportation fees, that may be incurred if skilled technicians have to travel longer distances. The potential accessibility to the installation site is another pricing factor; simple installations are not very expensive in cities or residential areas, but the costs may rise as the technical requirement complexity progresses; someone may need additional time to reach the place, to help him doing the work, and the equipment required to complete the job.
Generator Capacity and Size
The performance and fitness of the generator depend on its rating and size, among other things. The generator’s rating is expressed in terms of kilowatts (kW) or kilovolt-amperes (kVA); the correct rating is necessary to ensure an adequate supply of electricity. For residential purposes, smaller generators are typically between 5KW and 20KW, primarily to serve household appliances such as refrigerators, lighting systems, and air conditioners. For medium-scale establishments and enterprises, the generators would range in size between 50 kW and 200 kW, for instance, in small or average-sized business premises and office buildings. For more high-end industries, the capacity of a generator can, in some cases, even exceed 1MW when there are large power requirements in industries or specific infrastructure-based sectors, such as hospitals and data centers.
Another factor to consider is the sheer bulk of the generator. There are small and easily movable ones that are ideal for users who anticipate occasional needs. On the contrary, the location of large generators is mostly fixed, which means that they require a specific area for both installation and maintenance. In addition to technical constraints, selecting a generator that is most suitable for the job involves other factors, such as load displacement, the startup energy potential of devices, and even plans for the future use of the facility. Additionally, having the right size of a generator is crucial, as over-sizing and under-sizing are undesirable, as they lead to either inefficiencies or underutilization of equipment.
Additional Equipment Requirements
Several approaches must be implemented when designing a standby power system to enhance its efficiency and ensure safety. In particular, transfer switches are crucial as they provide an uninterrupted changeover from utility to generator supply, thereby reducing business interruption. Automatic transfer switches are ideal for larger setups, as they automatically detect a power loss and initiate the generator without requiring human intervention. Moreover, there should be a provision for an effective facility to dissipate heat or exhaust gases generated during the generator’s startup, safeguarding both the equipment and the user. The next essential feature entails the characteristics of the fuel storage tanks, along with the fuel delivery lines, which should be designed with consideration for the specific time the generator runs. Additionally, they must meet the standards, regardless of the area’s safety and environmental regulations. There may be a need for noise control, such as soundproof barriers or enclosures, especially in low-rise construction or other areas of high residential density where noise control is a requirement. These would further promote high-quality power surge suppressors to prevent the risks associated with high voltage loading during operations. The last factor which cannot be neglected in relation to the generator system is maintenance tools that help in repair diagnosis and keeping repair items departments that are spare parts in stock or on order.
Types of Whole House Generators

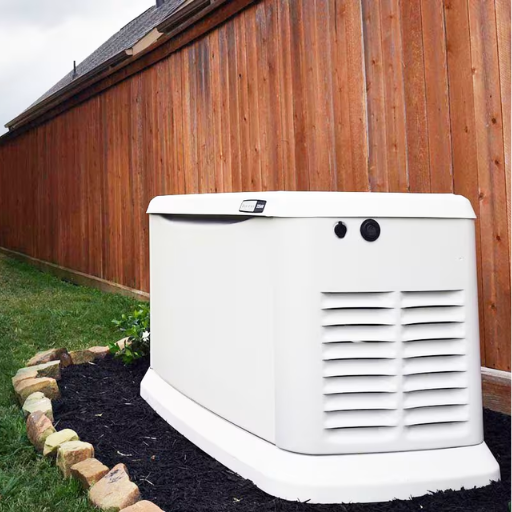

Standby Generators
This chapter presents integrated appliances that are permanently fixed in position and will be useful during power failures. Such systems are typically connected to an existing natural gas or propane pipeline, ensuring a continuous supply of fuel. Fuelled by natural gas or a similar source, generators can supply built-in electrically based systems such as cooling and lighting units, as well as other electrical appliances of the house. Such systems contain automatic load sharing, changing devices, and remote monitoring, enhancing the comfort of use of this equipments.
Portable Generators
Portable generators, unlike standby ones, are not permanently installed; hence, they offer the benefit of practicality at a reduced cost. They have cleaner engines and some models can run on two standard fuels, gasoline and propane. When a power interruption strikes, such devices are used to provide independent power to critical loads in the house. Nonetheless, they are rarely automatic and you must provision for their temporary installation factors as well. This factor contributes to the system having a reduced electrical power output than equivalent standby generator systems which is especially the case for portable generator systems.
Standby Generators – Detailed Overview
A standby generator is a permanent installation that automatically provides power backup in the event of a power failure. They typically have energy sources such as propane or natural gas and are connected automatically to the home’s electric system with an automatic transfer switch, ensuring they continue to run in the event of a power failure. This aspect is quite beneficial as the generator will kick in shortly after the electricity supply is regained.
In addition, contemporary electric generators come equipped with adaptive accessories, such as load management systems, web assistance for real-time monitoring of the generator using mobile applications, and improved fuel efficiency. Their emergency power distribution can be installed in complete homes or emergency sections, for example, heating and cooling systems, lights, and specific loads like medical devices. For instance, a 20 KW generator will be sufficient for most homes, air conditioning, and other household appliances.
Data show that in recent years, many people have embraced standby generators, as they play a significant role in the increase of harsh weather patterns, the importance of power in maintaining productivity and general discipline, among other factors. Although they may require more resources during acquisition compared to their portable counterparts, standby generators have demonstrated a strong ability to sustain and remain functional in the long run, necessitating significant investment from homeowners and businesses as well.
Portable Generators – Detailed Overview
Portable generators are generally low-capacity, temporary power supply solutions engineered to support loads during blackouts or in facilities where electricity is unavailable. The main reason may be that they are generally smaller in size, cheaper, and lighter than standby generators, making them ideal for quick use in events, emergencies, or construction sites under normal conditions. Unlike older models of portable generators, modern generators are less environmentally harmful and more efficient due to the adoption of improved technologies. Portable inverter generators are devices that can generate suitable power levels, especially when the power supply is unreliable. This type of generator is highly sensitive, as it can power devices ranging from computers to X-ray machines, among others. These devices require precise calibration to function correctly and prevent data loss, among other adverse effects. However, with reference to published reviews and sales of the equipment, portable generators continue to be in demand due to their price-performance ratio, which remains quite popular and acceptable. A number of units boast enough fuel for 8-12 hours of continuous operation. Despite the convenience, safety precautions are encouraged, especially in critical areas such as ventilation, to check for excessive carbon monoxide and potential health hazards.
Comparison of Generator Types and Costs
| Generator Type | Fuel Type | Runtime (Hours) | Power Output (Watts) | Average Cost (USD) | Key Features |
|---|---|---|---|---|---|
| Portable Generator | Gasoline/Diesel | 8–12 | 1,000–10,000 | 500–2,500 | Affordable, versatile, easy to store |
| Standby Generator | Propane/Natural Gas | Continuous | 7,000–20,000 | 5,000–15,000 | Automatic startup, long-term use |
| Inverter Generator | Gasoline | 6–10 | 1,000–4,000 | 300–3,000 | Quiet, fuel-efficient, lightweight |
| Solar Generator | Solar Power | Varies | 500–2,000 | 1,000–5,000 | Eco-friendly, renewable energy source |
| Dual-Fuel Generator | Gasoline/Propane | 8–15 | 3,000–10,000 | 800–3,000 | Flexible fuel options, good runtime |
| Industrial Generator | Diesel/Natural Gas | Continuous | 20,000+ | 10,000+ | High output for commercial use |
Generator Installation Process
1. Site Assessment
Evaluate the site to ensure it is sufficiently suited for insulation. Consideration must be given to the space and ventilation, as well as safety regulations. Also, consider the distance to sources of fuel, so that placing the generator near doors or windows may not be appropriate.
2. Power Requirements
A particular watt capacity will service all essential household items and systems. It is wise to buy a generator with more than the rated capacity, calculated to avoid breaking the system.
3. Permits and Regulations
If there are rules that dictate where and when the generator should be installed, please obtain the necessary permissions from the relevant authorities in those areas. Ensure all safety codes and policies have been followed.
4. Installation of Concrete Pad or Platform
Make sure that a firm and even surface, such as a concrete foundation, is created to hold the unit in position. The reason for this is that if the unit is placed on an unstable foundation, it will easily move or vibrate during operation and cause malfunctions.
5. Electrical Connections
A qualified electrician shall be hired to install a transfer switch in your home to connect the generator. This would enable the automatic transfer of power in the event of an outage, while also avoiding the risk of backfeeding.
6. Fuel Supply Setup
Mount or hook up the required fueling system (e.g., propane tank, gas line, or solar panels) according to the type of generator being installed. It is essential to investigate for ruptures or deficiencies in all joints as well.
7. System Testing
Next, the generator requires actual mechanical performance testing to establish whether it is running correctly. Among the key functions to examine during this procedure are proper starting, load management, and the correct operation of the transfer switch. This would mean that the system is prepared to perform correctly during emergencies.
8. Routine Maintenance Schedule
Finally, be sure to follow the manufacturer’s maintenance recommendations. This will involve checking the fuel levels within the generator and oil consumption, changing the oil or filters, and inspecting the systems at regular intervals to prevent or rectify any further deterioration of the equipment.
Site Preparation and Planning
For a power generator to be installed effectively, both the preparation of the location and thorough planning are crucial. The first step is to evaluate the site to determine whether the area is suitable, considering factors such as the ground condition, distance to powered buildings, airflow requirements around the generator, and accessibility for service. This establishment is required to adhere to local building codes and electrical safety regulations, including earthing and flammability distance requirements for equipment.
Additionally, noise and emission restrictions must be considered in areas with high population density or significant environmental conservation concerns. Incorrect drainage is a risk that must be avoided, as it can cause water to pool, potentially weakening the generator. Furthermore, be sure to confirm that the area has sufficient space for both air inflow and outflow to avoid industrial heat that can lower efficiency and take over.
It’s very critical to map out the electrical power requirements in the plan stage so that the size of the generators can be easily calculated to handle the maximum load and other facilities can be refurbished if need be. Provision for additional infrastructure which may include structures such as a concrete base for the generator, one or two weatherproof canopies to serve as the generator house and cable trays for safe routing of electrical cables.f Further careful attention at this point may significantly enhance the durability and efficiency of the generator.
Wiring and Electrical Connections
Proper arrangement and connections are absolutely essential for a backup generator system to function correctly. Without any damages Having in mind that it will be necessary to interconnect the various subassemblies of the generator with wires, it becomes appropriate to remind the researcher that it is required to follow the National Electrical Code (NEC) standards and/or other statutory instruments in existence; to make sure that the safety precautions are adhered to and also avert any particular risks that might otherwise occur.
As stated earlier, the underlying principles should involve wire gauge, insulation type, and matching load requirements with voltage and amperage ratings to avoid overheating or other faults. For installations of large electricity-consuming equipment, it is recommended to use high-quality changeover switches, which facilitate the seamless changeover of a running object from a source of electricity supply to a generator without service interruption. In addition, when designing an electrical connection in a circuit, one must consider several important factors, including the type of current and its overload protection, as well as the use of proper materials. Then, care must be taken in selecting the materials, especially when there are application requirements or tendencies that differ from the standard; the most suitable materials should be chosen, along with the necessary current-carrying requirements. Correct cable trays, tubs, and fittings, along with an effective earthing system, not only aid in the increased system functioning but also protect the system against electrical risks and EMI.
Permits and Inspections Required
To satisfy the processing requirements outlined in local, state, and federal statutes, it is necessary to obtain the relevant approvals for all electrical installations and modernization tasks. In terms of complexity, particularly for larger jobs like these, such allocations may also encompass electrical works, civil works, and environmental protections, which necessitate unique standards that even the authorities must adhere to. All agglomerations or contracts of work must undergo inspection by appropriate bodies to determine whether their profile conforms to the safety and performance requirements, for example, those derived from the National Electric Code (NEC) in the US. Considerations of installations during inspection include such aspects as the right types and sizes of cables used during installation, all procedures taken to ensure earthing conditions are safe and suitable, and fault current limiters and their applications and behavior in the network. There is a risk that certain high-voltage networks, installations such as medical facilities or server rooms, may be complex but effective in resolving compliance issues in these areas. Suggesting that the installation of any equipment requires an enormous amount of effort, and, now that all the administrative work is done, for example, an electric permit, the date of the inspection is fixed, and no force majeure or charge.
Maintenance Requirements for Whole House Generators
- Oil and Filter Changes: Replace the motor oil and oil filter after 100-200 hours of use, or at least once a year, as recommended by the manufacturer.
- Battery Checks: Regularly monitor the battery’s status to ensure it is fully charged, clean, and free from damage or rust.
- Air Filter Replacement: Clean and/or replace the air filter at least once a year, or more frequently if the environment is exceptionally dusty.
- Coolant System Maintenance: Check the coolant level and determine if a full system flush is necessary, as recommended by the manufacturer.
- Fuel System Inspection: Inspect all fuel delivery tubes to ensure they are always selecting the best rates. For gas generators, always check to ensure that the fuel passage is not obstructed at any time.
- Exercise the Generator: Powering on the generator regularly, at least once a month, for a short time, helps to space out the wear and tear on its components and to ensure the generator is in good working condition.
Maintenance Costs and Schedules
Several crucial determinants, including nominal size, exposure time, intricacy of different components, and specific energy source, facilitate the control of operating costs of electricity generation machinery by the maintenance department. This understanding is that large machines or those running under extreme conditions will require more maintenance. Similarly, machines with high technology like turbine blades of the turbine and a control system are involved will be higher than those with lower. Based on the extent of work, such as overhaul, reconditioning, and rectification, the maintenance quota may range from a few hundred to several thousand dollars per year.
The development of a customized schedule for servicing is crucial in maintaining optimal system performance over time, while also ensuring effective cost control. The professional guidelines adhere to the policy of servicing components such as filters, fuel pumps, or lubrication systems according to the manufacturer’s intervals, which are typically after 500-1000 hours of operation. Technological advancements, especially in the maintenance sector, and the inclusion of IoT sensor systems in predictive maintenance systems that can identify issues with machine components and take action in real-time, provide just-in-time recommendations for health components, and even intervene in critical situations, all based on empirical data. The benefit of this model is two-fold, as it not only saves equipment from breaking down but also ensures that emissions are reduced. With this new approach, in most cases, the life of machines is appreciably extended.
Best Practices for Keeping Generators Optimal
Regular Maintenance Scheduling
If you must use the generator over a long period, you can avoid unnecessary generator expenses by adhering to the stipulated working schedules and consistently servicing the generator. It can reach its peak when specifications that were initially drawn have been adhered to, and the generator has been well-maintained. A study showed that failure to do maintenance activities at the suggested intervals can cause inefficiencies that reach up to 15% per year
Use of High-Quality Fuel and Fluids
The adherence and high quality of fuel and lubricants in the generator have a significant influence on the efficiency and durability of the generator. Allow dirt or quality below the recommended standards to enter the system, and dirty injectors and residues in the system will clog up the burning chamber. It is possible to stop such contamination and degradation of the fuel systems with the simple application of industry-standard fuel additives.
Environmental Considerations and Placement
Correct placement reduces the risks that interfere with conditions outside of a generator’s performance, such as excessive heat, humidity, or dirt. When locating generators with sufficient air transfer and a weather-protective installation, it results in reduced losses and overall improved quality performance every time it starts up. Also, when placing the equipment, it is necessary to consider the order and amount of heat dissipation to avoid excessive heat when fixing it in the wrong spot.
Implementation of Predictive Maintenance
Utilizing smart solutions, such as IoT sensors or advanced analytics packages, in conjunction with comprehensive maintenance packages, enables the plant maintenance department to make informed strategic decisions by proactively addressing potential issues within the equipment’s operation. The effect of this was addressed in a study carried out by Morgan & Company, which showed that predictive maintenance decreased the occurrence of corrective maintenance by 50%. In comparison, maintenance costs were reduced by 10-40% depending on the system.
Regular Testing Under Load
To ensure that a generator meets the requirements of an audit, a load test is necessary. It provides an assessment of a generator’s capacity, where most tests are usually done with zero load on. Bluff tests check if generators of a specific capacity will work at all. Naturally, this requires such generators to be operated every couple of months as soon as recommendations are followed. Which are the best known to comply with industry standards?.
Battery Maintenance and Inspection
As one of the results of the observed data, an inoperative battery is one of the most common reasons a generator cannot be started during an emergency crisis. While accepted boredom has always been a topic in training organizations, it was not new to some of the delegates. Manufacturers also stated that their technical staff were aware of the technological advances in the market and were involved in other proactive activities.
Choosing the Right Whole Home Generator
Determining the right wattage for a standby home generator depends on assessing the energy usage of your house during power outages, the availability of alternative fuel, the cost of assembling it, and the installation challenges. Otherwise, start by determining the total wattage of the appliances and systems that you wish to operate in times of power outages, e.g. heating, ventilation, and air conditioning, refrigeration, and medical appliances. It is common for a licensed electrician to conduct a load analysis and recommend the right size of diesel generator in terms of kilowatt capacity.
The next one to be defined is the type of fuel. Standard options are natural gas, gasoline, and diesel fuel. Natural gas and propane are commonly used because they are highly reliable and convenient to store; however, diesel is particularly useful in situations where extensive systems will be employed, given its higher energy content. There is a need to ensure that one is a position where they can be able to access this fuel or they have storage space.
Consider also the possibility of needing a generator, including factors such as the area’s installation space, the ability to transfer power, and local building codes. An excellent installer should be able to verify compliance with the regulatory framework and obtain the necessary approval for installing a generator to manage electricity loads. A human is better at identifying and assessing risks; thus, combining the above-stated will guarantee the availability and efficiency of power.
Assessing Power Needs
The examination in terms of power requirements cannot overlook the total power measured in watts required to power the necessary devices and nodes while the power distribution is off. You should first determine the primary power consumers, including items such as refrigerators, HVAC units, lights, medical machines, and communication equipment. Check the amount of power a particular appliance draws from the electricity system, typically found on the labels or manuals, expressed in watts or amps (1 amp at 120 volts corresponds to 120 watts). These amounts are summed up to give the total power required for a given load under normal operating conditions.
In addition to this, it is essential to consider the surge wattage, which is the extra power consumed by motors or compressors, such as those found in systems like refrigerators and pumps, when they start. Even though basic wattage is in operation, there is usually a spike during that starting time. Ensure that you adhere to this spike load factor in your calculations to guarantee the generator can support this load.
To manage the electrical power within a whole building or an advanced setup, authorities may create a load list to distribute the utilization of the power resource better. Whereas other power users require proportionate or more of the power produced, less or none at all may be needed from others. Load calculators and professional assessors are there to provide modified figures and compute the size of the generator that should be installed. As long as necessary levels are met, exceeding them will lead to a reduction in the working standards of the entire facility, potentially resulting in its shutdown. Estimating such expectations and ensuring they are met also goes a long way in preventing other alternative sources of power from overloading existing power sources.
Fuel Type Considerations
Reference Sources
-
Feasibility Study for Off-Grid Energy Systems
- Key Findings: This study evaluates the lifecycle cost of installing and operating off-grid energy systems, including generators, in rural Ethiopia. It highlights the average cost per kWh and the economic feasibility of hybrid systems.
- Read more
-
Optimal Configuration of Hybrid PV-Generator Systems
- Key Findings: Focuses on the cost-effectiveness and energy efficiency of hybrid PV and diesel generator systems in Algeria.
- Read more
Frequently Asked Questions (FAQs)
Q: What is the average cost to install a whole home generator?
A: The cost of installing a home backup generator will hinge on several different things, including the kind of generator you want, the cost, and the complexity of the work required in putting the generator in its place. Homeowners should prepare to spend approximately $ 5,000-$ 15,000 for the installation costs of protecting the generator. It is in the homeowners’ prerogative to know that Generac generators are among the popular brands in the marketplace. It means then that the cost of the final solution of a portable generator will heavily depend on the external influencers available. Furthermore, the fees demanded by the service provider depend on whether the ceiling is amateur or professional, and on the skill that requires specific materials and manifold districts’ expectations.
Q: What factors influence the cost of installing a whole-house generator?
A: The question of what influences the cost of installing a whole-house generator always arises. Key drivers include the size of the generator, the energy source (L.P. gas or natural gas), and the distance from the home’s electrical system to the generator installation site. The size and complexity of the installation, particularly in cases where electrical rework is required, affect how much shall be spent on the project. Additionally, there may be extra costs associated with the location, including lender requirements and permits for whole-house generator installation. It is highly recommended that you seek the help of an expert specializing in installation services to provide you with a comprehensive cost breakdown.
Q: How do I choose the right size generator for my home?
A: Deciding on the right size of generator is a vital aspect of ensuring that your home or residence is well-maintained and kept powered in case of any blackouts. Therefore, the total power ratingof the electrical loads that one is obliged to bear should be precise. To work on the formula of the total rated power, there are such factors that you cannot do without and a generator technician can provide the necessary information so as to make for the exclusion of essential elements. In most cases, whole-house backup generators range from 10kW to 20kW, although higher-capacity generators are available for larger homes.
Q: What is the installation process for a whole house generator?
A: Installing a whole house generator includes a few mechanisms that re completed by the installers. First, a certified installer will visit your property to survey and identify the ideal location for the generator. Second, the transfer switch, a unit with wires that communicate and activate your generator in the house, is set up. Next, the generator is mounted and hooked to its source of fuel, which can be either gas or propane. Lastly, the installer performs some test runs to ensure that everything is correctly and safely set up. This kind of work is better entrusted to professionals to ensure compliance with regulations and achieve project efficiency.
