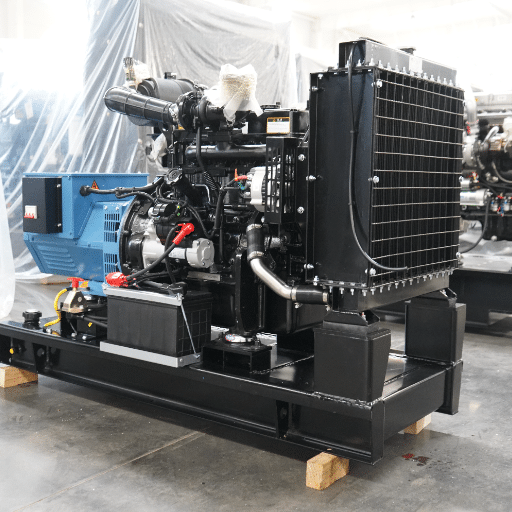

Generator heat exchanger cooling is a liquid-to-liquid method of rejecting engine heat into a separate water loop instead of into air. A shell-and-tube exchanger takes the place of the radiator and fan, so the engine’s jacket water transfers its heat to a second water supply: city water, a cooling tower loop, building chilled water, or the sea. The two fluids never mix. You use it when a generator has no workable path to outside air, such as a basement plant room or a marine installation.
Here is the part most guides skip. A heat exchanger does not get rid of heat. It relocates it.
A radiator’s job ends at the fan, and the heat is gone. A heat exchanger’s job ends at a coupling, and from that point the heat belongs to someone else’s loop. That loop arrives with its own water chemistry, pumps, fouling, and freeze risk. Choosing generator heat exchanger cooling is not buying a component. It is accepting ownership of a second cooling circuit.
One clarification, because the term is ambiguous. This article covers engine jacket water cooling on a diesel or gas genset. A different device with a similar name cools the alternator windings on large power-plant generators, which is not what a standby genset uses. We build these configurations into large indoor and marine sets at Shandong Huali, so the rules below come from the engine documentation and our own installations.
Key Takeaways
- A generator heat exchanger is a liquid-to-liquid device that moves jacket water heat into a separate loop. The two fluids never mix.
- It relocates heat rather than removing it, so the secondary loop’s pumps, water quality, and fouling become part of what you own.
- The decision rule is a head rule. Exceed the dynamic head limit and a booster pump is enough. Exceed the static head limit and the radiator and generator must be isolated, which is exactly what a heat exchanger does.
- The engine side is protected by glycol, but the raw water side cannot be protected from freezing, so this is a poor fit for an idle standby set in a cold climate. Local codes may also restrict city or pond water cooling for emergency standby sets.
What Generator Heat Exchanger Cooling Does (and Does Not Do)
A shell-and-tube exchanger has four main parts. The shell is the outer cylinder, the tube bundle sits inside it, and the tube sheet holds the tubes in place and keeps the two fluids apart. Baffles force shell-side fluid to cross the tubes rather than run straight through, raising turbulence and improving heat transfer.
Engine coolant flows on one side, raw or secondary water on the other. Heat passes through the tube walls and neither fluid ever touches the other. Raw water carries scale-forming minerals, chlorides, and suspended solids that would damage the engine’s cooling passages, so the exchanger is a barrier as much as a heat path.
A generator heat exchanger is one configuration inside a larger generator cooling system, and the same closed loop that feeds a radiator feeds this device. The circuit itself is unchanged: pump, engine block and head, thermostat, and back to the pump. For the component-by-component walkthrough, see our guide to how a generator cooling system works.
Two things it is not. It is not a cooler in the sense of making anything cold, because it rejects heat to whatever the secondary water happens to be. And it is not a substitute for ventilation. Kohler’s engineering white paper on remote cooling design is blunt about it: a remote cooling system needs less airflow, but it still needs enough to clear radiant heat and supply combustion air.
Radiator vs Heat Exchanger Cooling: The Decision Rule
Most comparisons between radiator and heat exchanger cooling stay vague, saying a heat exchanger is for “when a radiator won’t work” and leaving it there. There is a precise rule, and it comes down to two kinds of head.
Static head is the pressure in the system when there is no coolant flow. One thing sets it: how much higher the radiator sits than the engine. If static head exceeds what the engine is designed for, the result is not a gradual loss of performance. It is premature gasket and seal failure, because a pressure is squeezing those parts they were never rated for.
Dynamic head is the total resistance of the cooling system while coolant is flowing, set by flow rate, pipe size, and pressure drop across the radiator. Unlike static head, it can sometimes be reduced with larger piping.
The rule then falls out cleanly:
- If only dynamic head exceeds the limit, a booster pump can overcome the extra restriction. You keep the radiator.
- If static head exceeds the limit, the radiator and the generator must be isolated from one another. That isolation is normally done with a heat exchanger.
So a heat exchanger is not a general-purpose upgrade for a struggling cooling system. It answers one specific problem: the radiator is too far above the engine, and no pump can fix a static pressure problem. Daniel Okafor, commissioning a 1,000 kW set in a Lagos hotel basement, learned this the hard way. The radiator sat nine meters above the engine and the set ran hot. The site assumed the machine was undersized, but static head exceeded the engine’s published limit, so coolant never circulated properly.
When the site has outdoor air available but the radiator simply needs to sit some distance away, that is a different decision. Our guide to the remote radiator generator covers distance limits, pump sizing, and piping.
| Factor | Unit-Mounted or Remote Radiator | Heat Exchanger |
|---|---|---|
| What carries the heat away | Air | A second water loop |
| Room ventilation needed | High for unit-mounted, lower for remote | Low, but radiant and combustion air still required |
| External water supply | Not required | Required, and continuous |
| Indoor or basement fit | Poor to moderate | Good |
| Marine fit | Poor | Excellent |
| Noise | Fan noise present | Very quiet in the room |
| Freeze risk | Coolant side only, glycol protected | Secondary side cannot be glycol protected |
| Added maintenance | Belts, fins, fan | Water chemistry, strainers, zincs, impeller, fouling |
| Added equipment | None | Secondary pumps, strainers, controls |
| Relative cost | Lower | Higher, and typically used only when necessary |
Where the Second Loop Sends the Heat: Four Heat Sinks
A heat exchanger is only half a system. The other half is whatever absorbs the heat, and that choice drives most of the project’s risk.
City and municipal water is the simplest arrangement on paper, provided the supply is continuous and meets the exchanger’s flow, temperature, and pressure requirements. The problem is not technical. Kohler’s white paper states plainly that local codes may prevent or restrict emergency standby generators from using city or pond water cooling systems. The application most likely to consider city water is precisely the one most likely to be barred from it. Check with the authority having jurisdiction first.
Cooling towers cannot be piped directly into an engine. The jacket system is a closed, pressurized loop with treated water and glycol, while a cooling tower is an open loop with its own chemistry and evaporation losses. Connecting them would contaminate the engine loop and destroy the glycol concentration, so the two are separated by a heat exchanger. Towers are costly and consume space, so they make sense when one already exists.
Building chilled water is the urban installation answer. Where a building already has a chilled water system, the generator can reject into it through an intermediate loop, which cuts room ventilation to what combustion air and radiant heat actually require. The building mechanical team has to agree to absorb the load during design, not commissioning. A generator set ventilation requirements review early in the project will tell you how much airflow you are actually saving.
Keel cooling and skin cooling is marine, and genuinely a different animal. A keel cooler is an outboard heat exchanger attached to the submerged hull. Jacket water circulates through it, driven by the engine’s own water pump, and the sea absorbs the heat. Raw water never enters the vessel’s cooling system, so there is no impeller to fail, no strainer to clog, and no zinc to consume. Two rules matter for gensets: a genset’s keel cooler must be sized larger than a propulsion engine’s, because a generator often runs at maximum load while the vessel is stationary, and it should never be shared with another engine’s.
| Heat sink | The constraint that decides it | Freeze risk | Who maintains it |
|---|---|---|---|
| City / municipal water | Code permission, plus a continuous supply | Low, if drained | Site facilities |
| Cooling tower | Space, cost, usually only if one exists already | Moderate, open loop | Site facilities |
| Building chilled water | Mechanical team agreement, load capacity | Low, closed loop | Building operator |
| Keel / skin cooling | Marine only, must be oversized and isolated | Low, sea moderates | Vessel crew |
Generator Heat Exchanger Sizing: The Water-Side Numbers
Sizing is where generator heat exchanger cooling gets specific, and where most published guidance stops. These figures come from Caterpillar’s marine application and installation guide, one of the few documents that treats the cooling water side as an engineering problem rather than a plumbing afterthought.
Jacket water targets. Keep the differential below about 8.3 °C (15 °F) at maximum engine heat rejection, and retain the thermostats so coolant returns to the engine at roughly 79 °C (175 °F).
Margin. Size the exchanger for a heat rejection rate approximately 10 % greater than the tabulated figure, covering normal variation and momentary overloads.
Flow. The relation is gpm = Q ÷ (500 × ΔT), where Q is the heat rejected to the jacket water in BTU per hour and ΔT is the allowable water temperature rise in °F.
Raw water outlet. Water leaving the exchanger should not exceed about 140 °F (60 °C), which sets your usable ΔT because the inlet temperature is whatever the site supplies. A set rejecting 19,200 BTU per minute with 80 °F inlet water and the 140 °F limit needs roughly 40 gpm.
Put the raw water through the tubes. Caterpillar’s guidance says this directly, and the reason is maintenance, not thermodynamics. A tube bundle can be cleaned by pushing a metal rod through the tubes; the shell side cannot, because it needs chemical cleaning that, on a marine installation, is only available shore-side. An exchanger piped the other way is one nobody can clean in place.
Watch velocity and pressure drop. In a single-pass exchanger the cold water should flow opposite to the jacket coolant, which maximizes the temperature differential. Tube velocity should stay below 183 cm/s (6 fps), above which erosion becomes a real failure mode, and shell side pressure drop has to stay within what the engine’s freshwater pump can deliver. Mount the exchanger below the expansion tank.
Arun Patel manages a plant on a river site in Bangladesh. His installation was sized on tabulated heat rejection with no margin, and the raw water was piped through the shell because that was how the pipework happened to fit. Two summers later the set was derating under load: river water had laid down scale where no rod could reach.
Sizing against your actual heat load, not a rule of thumb? Our breakdown of the generator heat rejection calculation gives you the number this section is built on.
The Freeze Problem
This is the consequence of the relocation that most projects discover too late.
The engine side is protected. A 50/50 glycol mix protects the coolant to roughly −37 °C, and the chemistry that keeps it that way is covered in our guide to diesel generator coolant antifreeze.
The secondary side has none of that protection. Raw water freezes at the temperature water always freezes at. You can add glycol to a closed secondary loop, but then you have built a second closed loop and inherited its chemistry. The problem has been moved, not solved.
Generator heat exchanger cooling is therefore a poor fit for a standby generator that sits idle through a freezing winter, which is precisely the situation where a standby generator matters most. Draining the secondary loop after every run solves it, but conflicts directly with the readiness a standby set exists to provide.
Water Quality and Maintaining the Second Loop
This is the maintenance the radiator never asked of you, and it belongs entirely to the secondary side. The engine-side service schedule is a different job, covered in our guide to cooling system maintenance.
Water chemistry is where an installation either lasts fifteen years or fails in three. Engine-side fresh water must meet a defined specification before any inhibitor is added. Caterpillar’s limits are illustrative: pH between 5.5 and 9.0, chlorides under 40 ppm, total dissolved solids under 340 ppm, sulfates under 100 ppm, and hardness under 170 ppm. Tap water frequently fails several of these. Seawater-side components should be copper-nickel, because standard steel tube bundles do not survive salt water, and sacrificial anodes are mandatory wherever dissimilar metals meet seawater. Scale is the other threat: dissolved minerals precipitate onto hot surfaces and insulate them, and published guidance cites heat transfer losses around 40 % once significant scale forms. Scale is the most common way a correctly sized exchanger becomes an undersized one.
Zinc plugs, or sacrificial anodes. Caterpillar’s inspection schedule is a sensible template: inspect them within 24 hours of filling the piping with seawater, again after 7 days of submersion, then at 60 to 90 days, and annually after that. One detail catches people out: never install zinc plugs with PTFE tape or a non-conductive pipe sealant, because the sealant’s insulating properties stop the zinc from doing its job.
Strainers. These protect the pump, the exchanger, and the engine’s passages from debris. Nothing larger than 1.6 mm (1/16 in.) should pass the screen. Plate type exchangers need a mesh finer than 3 mm; tube type exchangers need a mesh finer than 5 mm. A well-sized strainer imposes no more than about 9 kPa (3 ft of water) of restriction at full flow. Use duplex strainers where you can, so cleaning does not interrupt seawater flow.
Heat exchanger cleaning. For a marine unit, Northern Lights specifies cleaning the exchanger core once a year or after roughly 200 hours of operation, whichever comes first. Drain the expansion tank and exchanger, pull the core, rod the tubes clean, flush, inspect, reassemble, and check for leaks.
Raw water pump impeller. This wear item fails without warning. Northern Lights specifies changing the seawater pump impeller every 1,000 hours on one model and every 750 hours on another. If an impeller comes out with vanes missing, those fragments are now somewhere downstream, so a repeat loss-of-flow fault after an impeller change points squarely at a blocked exchanger core. Before the first freeze, drain the exchanger and any raw water passages.
Need help specifying the water side of a large installation? Send us your site conditions, including ambient, available water source, and room constraints, and we will spec the cooling configuration with the set. Talk to our engineering team →
When Generator Heat Exchanger Cooling Is the Wrong Answer
Generator heat exchanger cooling is the wrong choice in five situations:
- The site is an idle standby set in a freezing climate. The freeze asymmetry above is disqualifying.
- City water is code-restricted for emergency standby. If municipal water is barred, the cheapest option disappears.
- The room can support a remote radiator instead. A remote radiator needs no second loop, no water chemistry, no strainers, and no zincs. Our remote radiator guide covers that decision.
- There is no reliable water supply. The system depends on continuous flow, while a remote radiator needs none. An intermittent supply is worse than none, because it fails silently.
- The engine is air-to-air charge air cooled. If the charge air circuit cannot be piped without losing transient response or jeopardizing emissions certification, the configuration is off the table.
FAQ
What is the difference between radiator and heat exchanger cooling?
A radiator rejects engine heat to air using a fan and a finned core. A heat exchanger rejects the same heat to a second water loop through a shell-and-tube or plate unit, with no fan. Radiators are cheaper but need airflow; heat exchangers are quieter, suit indoor and marine sites, and need a continuous water supply.
When should a generator use a heat exchanger instead of a radiator?
The rule is about head. If only dynamic head exceeds the engine’s limit, a booster pump solves it and you keep the radiator. If static head exceeds the limit, meaning the radiator sits too far above the engine, the two must be isolated, and a heat exchanger is how that isolation is normally done.
Can a generator use city water for cooling?
Technically yes, if the supply is continuous and meets the exchanger’s flow, temperature, and pressure requirements. Practically, local codes may restrict or forbid city or pond water cooling for emergency standby generators, since those sets may run for hours and discharge continuously. Confirm with the authority having jurisdiction first.
How do you size a generator heat exchanger?
Keep the jacket water temperature differential below about 8.3 °C (15 °F) at maximum heat rejection, and size for roughly 10 % above the tabulated heat rejection. Calculate flow with gpm = Q ÷ (500 × ΔT). Keep raw water leaving the exchanger below about 140 °F (60 °C), and keep tube velocity under 183 cm/s (6 fps) to avoid erosion.
Conclusion
Four decisions determine whether generator heat exchanger cooling succeeds or becomes a maintenance liability.
Decide with the head rule. Static head exceeded means isolation, and isolation means a heat exchanger. Dynamic head exceeded means a booster pump. Getting this backwards wastes a commissioning trip.
Size on the water side, not the catalog. Jacket water differential under 15 °F, a 10 % margin on tabulated heat rejection, raw water out under 60 °C, tube velocity under 6 fps, and the raw water through the tubes so somebody can actually clean it.
Choose the heat sink against its constraint, not its cost. City water is the cheapest until a code official says no. Cooling towers need space. Keel coolers must be oversized and never shared.
Plan the second loop before you own it. Water chemistry, strainers, zincs, impeller spares, and a freeze strategy are not afterthoughts. They are the price of the configuration.
A radiator throws heat into the air and the job is finished. A heat exchanger relocates heat into a loop you now own. Both are correct on the right site, and the difference is decided long before anyone orders equipment. Contact our engineering team →
